King Canada  |  SKU: KC-1632DS

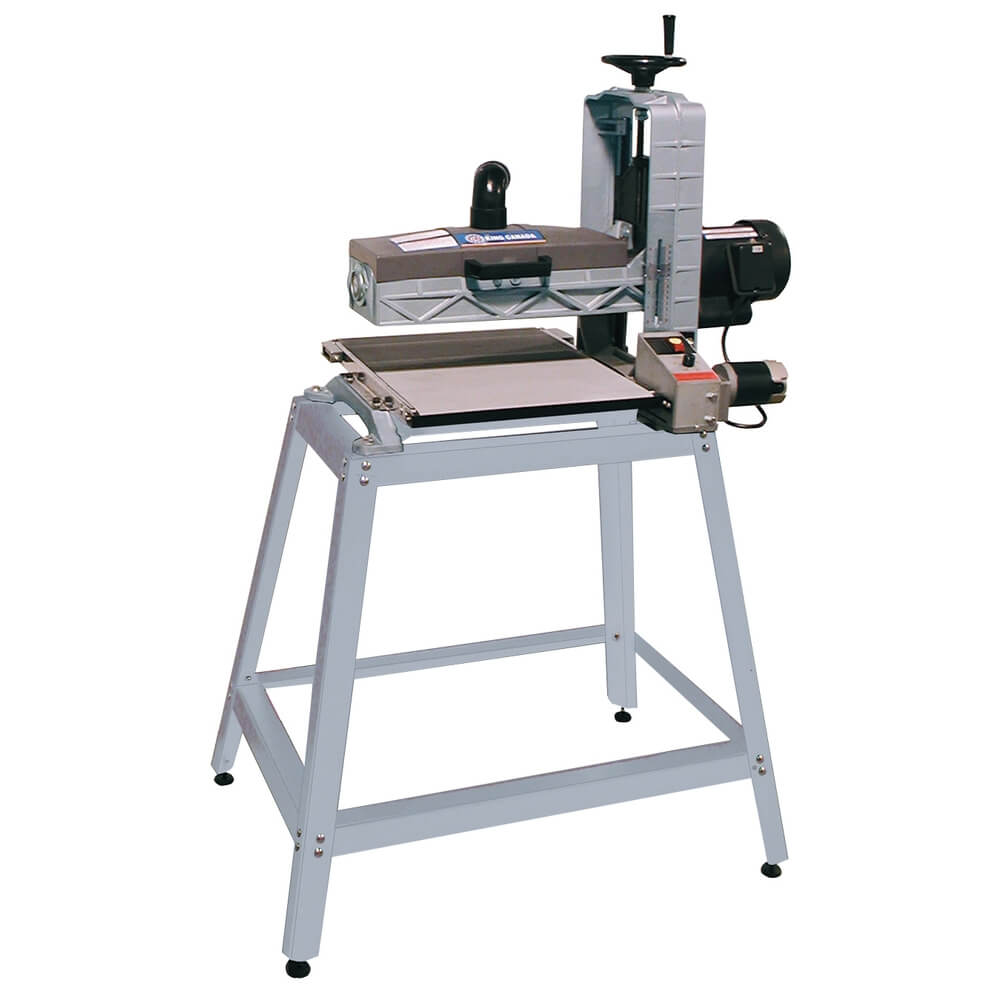

KING CANADA KC-1632DS 16" OPEN DRUM SANDER *stand included*

$1,399.00
Shipping calculated at checkout.

May have to be ordered, usually ships within 1-2 weeks

Delivery and Shipping

We will ship your order out as soon as we can. If your order is placed after hours it will be fulfilled the next working day. If an item of your order is out of stock, you will be notified via email, as well as the possibility of partially shipping your order. For any questions and concerns please don't hesitate to give us a call.

Description

The KING Canada KC-1632DS 16" Open Drum Sander is designed for efficient thickness sanding of wide boards and panels. Its open-ended design allows you to sand material up to 32" wide in two passes, making it a versatile addition to woodworking shops handling larger workpieces.

Powered by a 1 HP, 10-amp drum motor and a 1/8 HP feed motor, the KC-1632DS features an adjustable feed rate from 0 to 31 surface inches per minute. The sanding drum operates at 1,720 RPM and uses a 3" x 96" sanding belt for efficient material removal and consistent results.

The machine features an easy-to-adjust conveyor belt tracking system and a convenient clamping system for quick sanding belt installation. A metric and imperial depth scale allows for accurate thickness adjustments, while the included metal stand provides a stable working platform.

Key Features:

  • 16" open drum sander

  • Sands boards up to 32" wide in two passes

  • 1 HP, 10-amp drum motor

  • 1/8 HP feed motor

  • Adjustable feed rate from 0–31 surface inches per minute

  • Drum speed of 1,720 RPM

  • Maximum board thickness of 5"

  • Minimum board thickness of 1/8"

  • Minimum board length of 2-1/4"

  • Uses 3" x 96" sanding belts

  • Easy conveyor belt tracking adjustment

  • Convenient sanding belt clamping system

  • Metric and imperial depth scale

  • 4" dust chute

  • Metal stand included

  • 110V, 60Hz, single phase

  • Assembled dimensions: 40" x 27" x 61"

  • Assembled weight: 156 lb

  • Shipping weight: 172 lb
