Laguna  |  SKU: MTSF236110175-0130

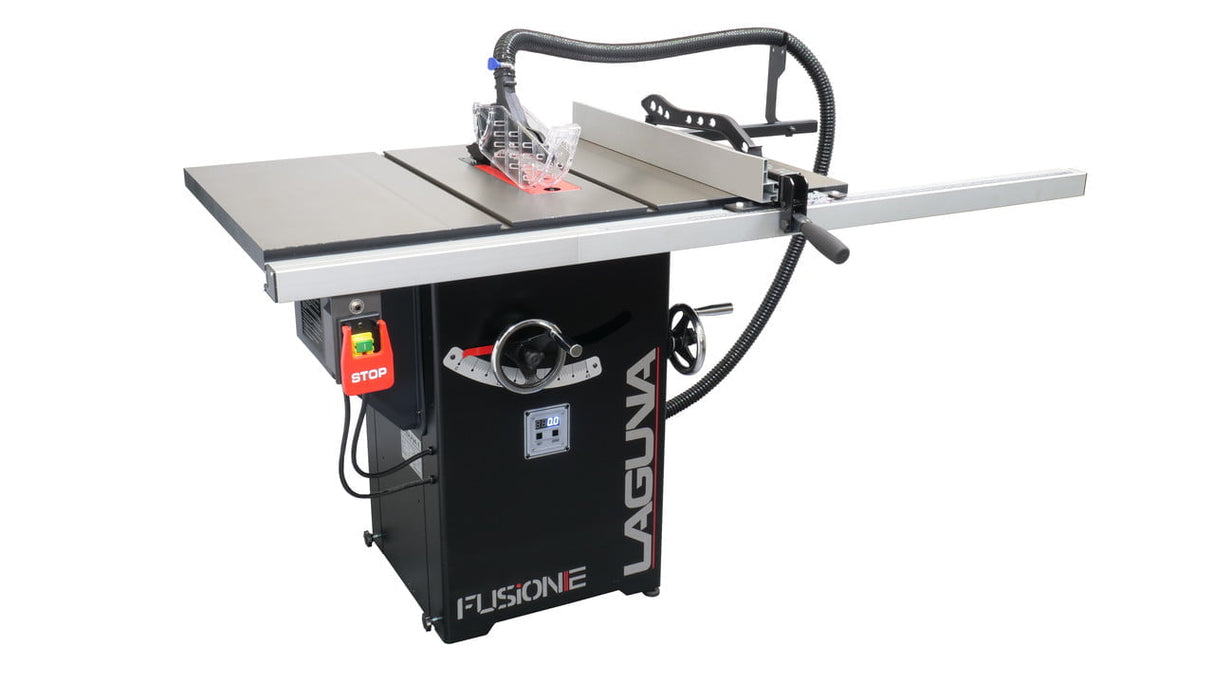

LAGUNA MTSF236110175-0130 F2 Fusion Tablesaw

$2,299.00
Shipping calculated at checkout.

May have to be ordered, usually ships within 1-2 weeks

Delivery and Shipping

We will ship your order out as soon as we can. If your order is placed after hours it will be fulfilled the next working day. If an item of your order is out of stock, you will be notified via email, as well as the possibility of partially shipping your order. For any questions and concerns please don't hesitate to give us a call.

Description



The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.

Features:






  • 1.75HP TEFC Motor

  • 110V, Single-Phase, 60Hz Power Requirement

  • Fusion Dust Collection System

  • Cabinet Mounted Design

  • Included Tools & Integrated Tool Storage

  • Included 10 x 40T Carbide-Tipped Blade


F2 Features:


  • Full Cabinet Body

  • Trunion Mounted To Body Not Table

  • Cast Iron Table & Wings

  • European Hi-Lo Fence

  • Overhead Dust Collection

  • Quick-Release Blade Guard & Splitter

  • Riving Knife Included

  • Fence Mounted Push Stick

  • Miter Gauge Included

  • Tool less Blade Lock

  • Integrated Tool Storage

  • Polished Handles

  • 10 x 40T Blade Included

  • Premium Arbor & Motor Bearings

  • Mobility Built Into Cabinet


* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.

Blade Information

Included Blade Information: 10″ x 60T

Riving Knife/Spreader Thickness: 3/32″

Required Blade Body Thickness: > ⅛″

Required Blade Kerf Thickness: < 5/64″

Table Information

Floor To Table Height: 35″

Table Size With Extension Wing Width: 44″

Table Size With Extension Wings Depth: 27″

Distance – Front Of Table To Center Of Blade: 13-⅜″

Distance – Front Of Table To Blade At Maximum Cut: 8-21/32″

Main Table Size Thickness: 1-½″

Fence Information

Fence Type: Camlock T-Shape With Aluminum European Hi-Lo Fence

Fence Size Length: 33-7/16″

Fence Size Width: 9-13/16″

Fence Size Height: 3″

Fence Rail Type: Aluminum Extrusion/Angle Steel

Fence Rail Length: 66-9/16″

Fence Rail Width: 3″

Fence Rail Height: 2


Product Dimensions

Weight (Net): 276 lbs


Overall Width (Side-To-Side): 66-13/16″

Overall Depth (Front-To-Back): 39-⅜″

Overall Height: 42-⅞″

Footprint Width: 19-¼″

Footprint Length: 42-½″

Space Required For Full Range Of Movement Width (Side-To-Side): 66-13/16″

Space Required For Full Range Of Movement Depth (Front-To-Back): 39-⅜″

Shipping Weight: 435 lbs

Shipping Dimensions (W x L x H): 30″ x 48″ x 43

Construction Information

Table: Precision-Ground Cast Iron

Wings: Precision Cast Iron

Cabinet: Pre-Formed Steel

Trunnions: Cast Alloy

Body Assembly: Pre-Formed Steel

Fence Assembly: Aluminum Extruded Body

Rails: Steel

Miter Gauge Construction: Aluminum Body With Steel Bar

Guard: Steel And Clear Plastic

Body/Cabinet Paint Type/Finish: Powder Coated

Arbor Bearings: Sealed & Permanently Lubricated
